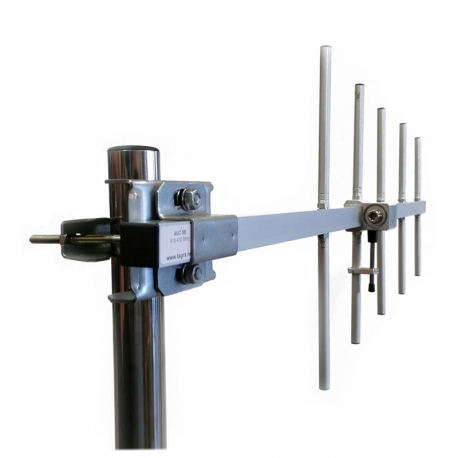

| AUC-5T - YAGI ANTENNA 5 ELEMENTS UHF TETRA 380-400 MHz | |
| Elements | 5 |
| Power | 500W |
| Gain | 9 dBd (11,15 dBi) |
| Impedance | 50 ohm |
| Material | Anodized aluminum QUALANOD certificate |
| R.O.E - S.W.R - T.O.S | 1,3:1 |
| Connector type | Female N connector |

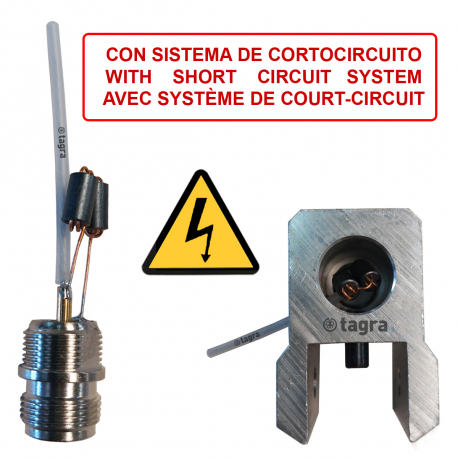

| Electrical protection | Si |
| Polarization | Vertical & Horizontal |
| Wind load | 180 km/h |
| Temperature (°C) | from -10º to 50º |
| Adjust type | Dipolo Gamma Match |
| Rel. front/back | 20 dB |
| Mastil diameter | 0,030-0,045 m |

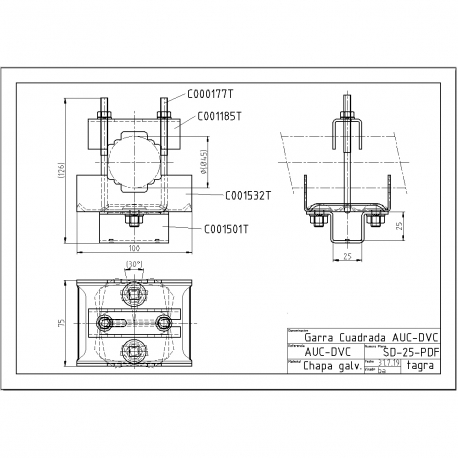

| Support | Included |
| Length | 0,95 m |
| Weight | 1,93 kg |
| Package dimensions | 100 x 10 x 9 cm |
| ES EN FR | |
