| AUC-2D - YAGI ANTENNA 2 ELEMENTS UHF 460-480 MHz | |
| Type | Directive |
| Elements | 2 |
| Power | 500W |
| Gain | 3 dBd (5,15 dBi) |
| Impedance | 50 ohm |
| Material | Anodized aluminum QUALANOD certificate and stainless steel |

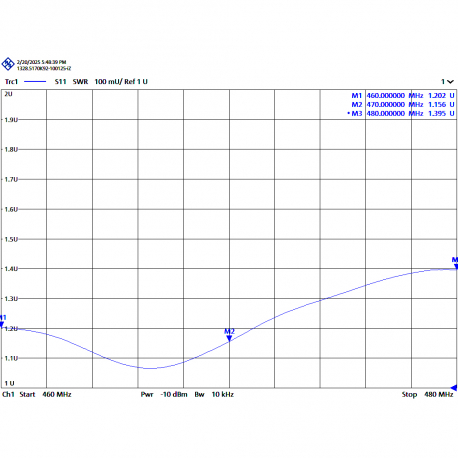

| R.O.E - S.W.R - T.O.S | 1,2:1 |
| Connector type | Female N connector |
| Radiator lenght | 0,40 m |

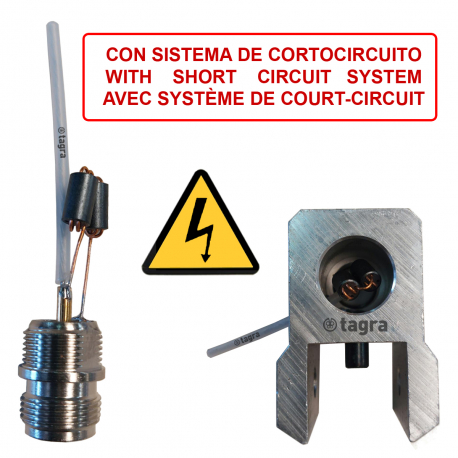

| Electrical protection | Yes |
| Polarization | Vertical and Horizontal |
| Wind load | 180 km/h |
| Temperature (°C) | from -10º to 50º |
| Adjust type | Dipolo Gamma Match |
| Mastil diameter | 0,025-0,045 m |

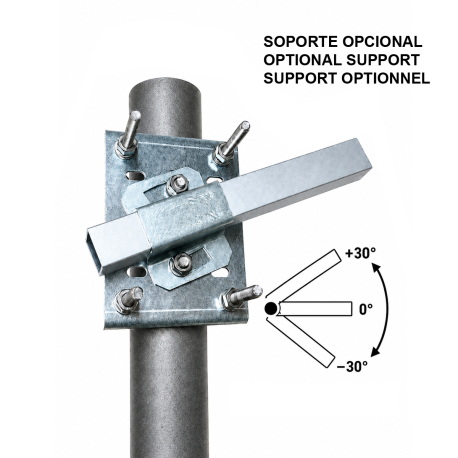

| Support | Included |
| Element lenght | 0,59 m |
| Length | 0,40 m |
| Weight | 0,70 kg |
| Package dimensions | 50 x 10 x 9 cm |
| ES EN FR | |
